Product detail
Description:
Three-phase compact MIG MAG welding machine, on wheels, supplied with M 36 welding torch and earth cable.
- Equipped with a 4 roller wire feeder.
- Ready for use with water cooled torch, together with cooling unit.
- It’s suitable to weld steel, stainless steel and aluminium.
- Multiple impedance.
- Possibility to adjust the welding parameters through 16 adjustment steps.
- Aluminium wire feeder that enables the adjustment of the pressure applied to the wire for having constant feeding and for decreasing wear of the feeding device.
- Possibility to adjust the spot welding time
- Highly stable thanks to large-diameter rear wheels.
Technical data:
|
Code
|
S00271
|
|
|
Item
|
MIG 4100
|
|
|
Input Voltage
|
3x230/400V 50-60Hz
|
|
|
Absorbed power
|
40% 15,9 kVA - 60% 10,7 kVA - 100% 7,6 kVA
|
|
|
MIN-MAX Welding current
|
35 – 400 A
|
|
|
Duty cycle – 10 MIN CYCLE ACCORDING TO EN 60974-1
|
40% 350A - 60% 290A - 100% 220A
|
|
|
Regulation steps
|
N° 2 x 8
|
|
|
Wire size (solid)
|
Ø 0,6 - 0,8 - 1,0 - 1,2 mm SOLID
|
|
|
Max. wire spool size
|
Ø 300 mm / 15 kg.
|
|
|
Protection class
|
IP21
|
|
|
Construction standards
|
EN 60974 – 1 / EN 60974 - 10
|
|
|
Dimensions
|
506x897x872h mm
|
|
|
Weight
|
92 kg
|
|
Accessories:
| 535015 |
3 m, M 36 torch
3 m, M 36 torch
|
(Standard) |
 |
| 535016 |
4 m, M 36 torch
4 m, M 36 torch
|
(Optional) |
|
| 535019 |
3 m, MB 501D torch, ready for cooling unit3 m, MB 501D torch, ready for cooling unit |
(Optional) |
 |
| 535020 |
4 m, MB 501D torch, ready for cooling unit4 m, MB 501D torch, ready for cooling unit |
(Optional) |
|
| 540011 |
Aluminium welding kit for Ø 0,8 - 1 wire and 3m torch.Aluminium welding kit for Ø 0,8 - 1 wire and 3m torch. |
(Optional) |
 |
| 540014 |
Aluminium welding kit for Ø 1,2 - 1,6 wire and 3m torch.Aluminium welding kit for Ø 1,2 - 1,6 wire and 3m torch. |
(Optional) |
|
| 384024 |
Adapter for wire reels of 15 kg. D. 300Adapter for wire reels of 15 kg. D. 300 |
(Optional) |
 |
| 357502 |
Flowmeter with 2 gas pressure gaugesFlowmeter with 2 gas pressure gauges |
(Optional) |
 |
| 560010.A25 |

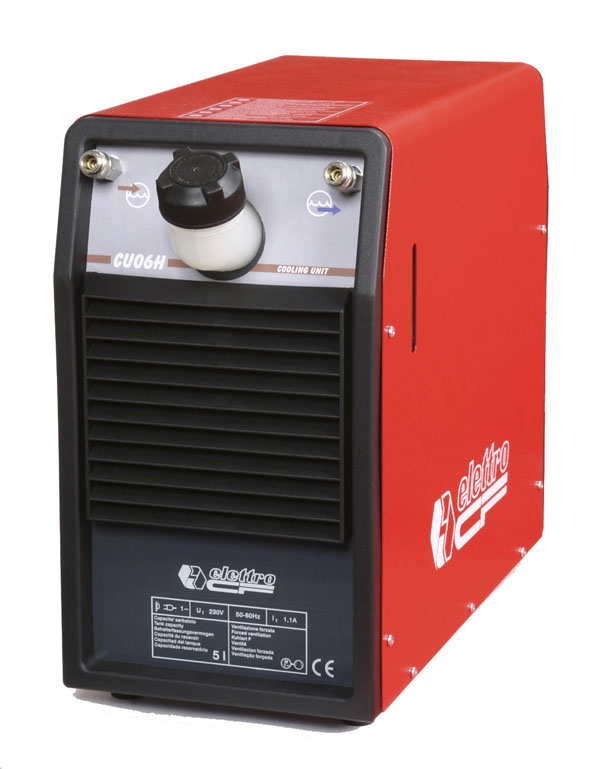

CU06H - Horizontal 5 l cooling unit for torchCU06H - Horizontal 5 l cooling unit for torch |
(Optional) |
 |
| 309073 |
Helmet with variable shade auto-darkening LCD filter (9-13 DIN) to protect face and eyes during cutting and welding appliances.Helmet with variable shade auto-darkening LCD filter (9-13 DIN) to protect face and eyes during cutting and welding appliances. |
(Optional) |
 |
| 309269 |
Helmet with auto-dimming LCD filter (9-13 DIN) MAXIVISION COLOR to protect face and eyes during welding.Helmet with auto-dimming LCD filter (9-13 DIN) MAXIVISION COLOR to protect face and eyes during welding. |
(Optional) |
 |
